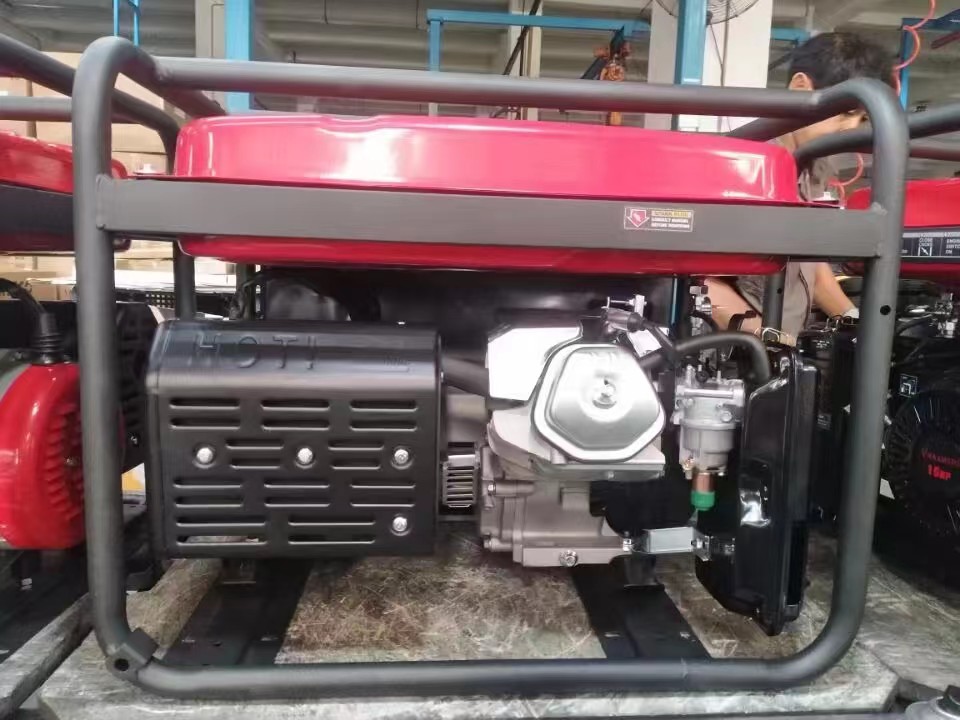

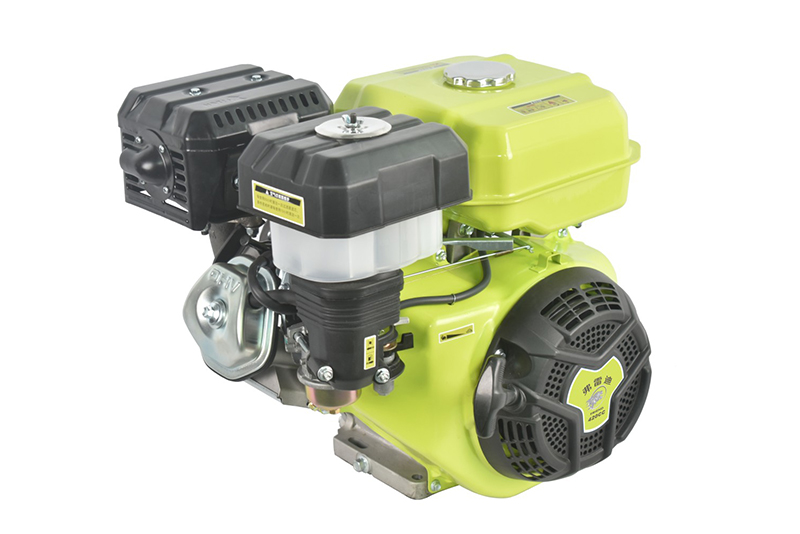

General Purpose Gasoline Engine
| General Purpose Gasoline Engine Technical Specifications |
| Engine Type | Single Cylinder, 4-Stroke, OHV / OHV | Cooling System | Forced Air Cooling |
| Displacement | 50cc – 450cc (depending on model) | Bore × Stroke | 48×40 mm – 90×66 mm (varies) |
| Compression Ratio | 6.5 : 1 – 9.0 : 1 | Max Power Output | 1.5 – 15 HP (1.1 – 11 kW) @ 3600 rpm |
| Max Torque | 2.5 – 25 N·m @ 2500 rpm | Fuel Type | Unleaded Gasoline (RON 90+) |
| Fuel Tank Capacity | 1.5 – 6.0 L (depending on model) | Oil Capacity (Engine) | 0.4 – 1.1 L (SAE 10W-30 / 15W-40) |
| Ignition System | Transistorized Magneto (TCI) / CDI | Spark Plug Gap | 0.6 – 0.8 mm (NGK BPR6ES or equivalent) |
| Starting System | Recoil Start / Electric Start (optional) | Air Filter Type | Dual Element / Foam / Paper |
| Carburetor Type | Butterfly / Diaphragm (floatless) | Governor System | Mechanical (flyweight) / Electronic |
| Rated Speed (RPM) | 3000 / 3600 RPM (adjustable) | Oil Alert System | Optional (low oil shutdown) |
| Crankshaft Output Type | Straight Shaft / Tapered Shaft / Threaded | Shaft Diameter (Standard) | 19.05mm (3/4") / 22.23mm (7/8") / 25.4mm (1") |
| Mounting Base Pattern | Standard SAE / Custom (2 or 4 bolt) | Dry Weight (approx.) | 12 – 35 kg |
| Dimensions (L×W×H) | 300×350×350 mm – 500×450×500 mm | Quality Certification | ISO 9001:2015 / EPA / CARB / EU-V |
| Warranty | 12 months | Origin | China |
