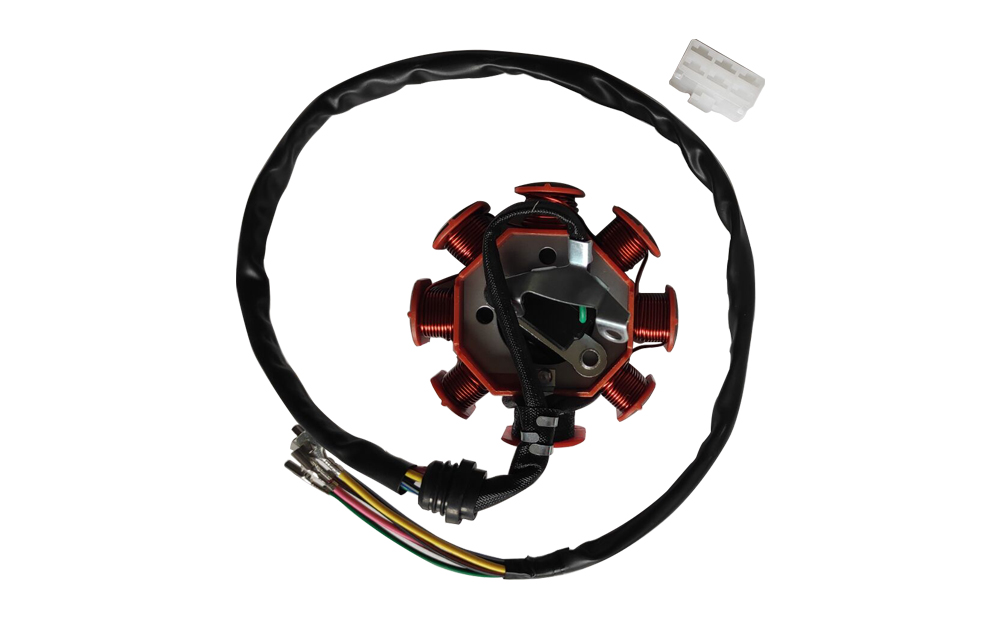

Motorcycle Magneto Coil
| Magneto Coil Technical Specifications | |||
| Wire Material | Pure Copper Enameled Wire (Class H) | Core Material | Silicon Steel Laminations (0.35mm / 0.5mm) |
| Insulation Material | Polyimide / Epoxy Resin (Class F/H) | Primary Resistance | 0.5 – 3.0 Ω (depending on model) |
| Secondary Resistance | 3 – 15 kΩ (depending on model) | Output Voltage (No Load) | 100 – 400 VAC (ignition) / 12 – 60 VAC (charging) |
| Power Rating (Charging Coil) | 30 – 150 W | Pickup Coil Resistance (if applicable) | 100 – 500 Ω |
| Number of Poles | 4 / 6 / 8 / 12 / 18 poles | Mounting Hole Pattern | 2 or 3 holes, M5 / M6 screws |
| Outer Diameter (Stator) | 60 – 120 mm | Inner Diameter (Stator) | 25 – 60 mm |
| Wire Gauge (AWG) | 18 – 32 AWG | Number of Turns | 100 – 2000 (depending on coil type) |
| Operating Temperature Range | -30°C ～ +180°C | Dielectric Strength | ≥ 500 VAC / 1 min |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC | Quality Certification | ISO 9001:2015 |
| Warranty | 12 months | Origin | China |
